3.4.1
ALUM4

NOTE
Danger of damage to property due to surge voltage. The required lightning protection measures must be taken for this board, see Section 2.1.2 "Lightning Protection".

Introduction
In the event that HiPath 3550 or HiPath 3350 experience a voltage drop, voltage dip or unrecoverable system errors, a trunk failure transfer (ALUM) is activated (MSI only).
The module implements a power failure transfer for four analog telephones. The only kind of telephone that can be used is an analog telephone. The signaling method of the connected telephones should be the same as that on the trunk line, otherwise signaling will not be possible.
When the system is deactivated or if an error occurs, the trunk lines are connected directly to the telephones. When normal operation is resumed, the transfer represented in the figure below takes place.

ALUM4 module function
 Figure 3-127   ALUM4 - Function


Interfaces

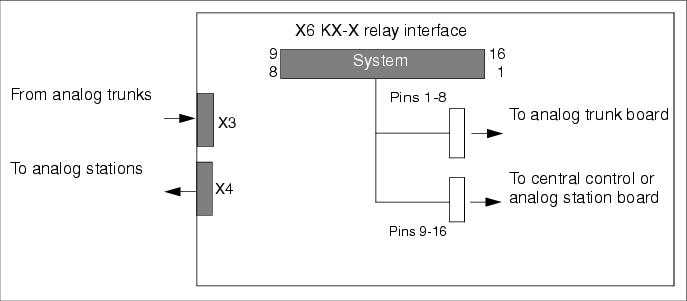

 Figure 3-128   ALUM4 - Interfaces (S30817-Q935-A)

The cable that is plugged in by default is split and is connected to the TLA and to the 4/8/16SLA board.

ALUM module contact assignments

 Table 3-173   ALUM4 - Interface Assignments (not for U.S.)
 Contact
 Connector X3
 Connector X4
 Connector X6
 1
 R1 from trunk 1a
 AE1 to Stn. 1a
 AT1 to TLA a
 2
 T1 from trunk 1b
 BE1 to Stn. 1b
 BT1 to TLA b
 3
 R2 from trunk 2a
 AE2 to Stn. 2a
 AT2 to TLA a
 4
 T2 from trunk 2b
 BE2 to Stn. 2b
 BT2 to TLA b
 5
 R3 from trunk 3a
 AE3 to Stn. 3a
 AT3 to TLA a
 6
 T3 from trunk 3b
 BE3 to Stn. 3b
 BT3 to TLA b
 7
 R4 from trunk 4a
 AE4 to Stn. 4a
 AT4 to TLA a
 8
 T4 from trunk 4b
 BE4 to Stn. 4b
 BT4 to TLA b
 9
 -
 -
 TA4 to SLA* a
 10
 -
 -
 TB4 to SLA* b
 11
 -
 -
 TA3 to SLA* a
 12
 -
 -
 TB3 to SLA* b
 13
 -
 -
 TA2 to SLA* a
 14
 -
 -
 TB2 to SLA* b
 15
 -
 -
 TA1 to SLA* a
 16
 -
 -
 TB1 to SLA* b
* = or to free analog port

 Table 3-174   ALUM4 - Interface Assignments (for U.S. only)
 Pin
 X3
(to MDF)
 X4
(to MDF)
  Y-Cable from X6 to TMGL4
 Y-Cable from X6 to Analog Ports1
 Pin
 Assignment
 Pin
 Assignment
 1
 R from trunk 1
 R to station 1
 1
 T to TMGL4 port 1
 9
 T to analog port 4
 2
 T from trunk 1
 T to station 1
 2
 R to TMGL4 port 1
 10
 R to analog port 4
 3
 R from trunk 2
 R to station 2
 3
 T to TMGL4 port 2
 11
 T to analog port 3
 4
 T from trunk 2
 T to station 2
 4
 R to TMGL4 port 2
 12
 R to analog port 3
 5
 R from trunk 3
 R to station 3
 5
 T to TMGL4 port 3
 13
 T to analog port 2
 6
 T from trunk 3
 T to station 3
 6
 R to TMGL4 port 3
 14
 R to analog port 2
 7
 R from trunk 4
 R to station 4
 7
 T to TMGL4 port 4
 15
 T to analog port 1
 8
 T from trunk 4
 T to station 4
 8
 R to TMGL4 port 4
 16
 R to analog port 1
Note: Pinouts shown are at the board itself. The supplied main distribution frame cable (MDF cable) reverses the signal order for X3 and X4 before the MDF.
1To the analog station ports on the CBCC (recommended) or to four consecutive ports on an 8SLA board.

ALUM module block diagram
 Figure 3-129   ALUM4 - Basic Structure
