CBSAP

NOTE
Danger of damage to property due to surge voltage. The required lightning protection measures must be taken for this board, see Section 2.1.2 "Lightning Protection".

Introduction
The CBSAP board (Central Board Synergy Access Platform) performs all central control and switching functions for HiPath 3800 (see Figure 3-5).

Capacity
 •   DTMF transmitters: 12
 •   DTMF receivers: 12
 •   Tone generators: 16
 •   Dial tone receivers: 4

Subboards
The following subboards can be used depending on the application:
 •   CMS clock module (optional)
 •   MMC multimedia card
 •   IMODN integrated modem card new (optional)
 •   LIMS LAN interface module (optional)
Contains two Ethernet (10BaseT) LAN connectors (8-pin RJ45 jacks):
   -   LAN1 (administration via HiPath 3000/5000 Manager E and CTI functions)
   -   LAN2 (not assigned)
 •   Music on hold (optional):
   -   MPPI (Product of BEYERTONE GmbH)
   -   MUSIC (Product of Sound Player GmbH)

V.24 interfaces (9-pin SUB-D plug)
 •   Service (X50) = for connecting the service PC
 •   Application (X51) = for connecting a printer or application

Switches and indicators
 •   Reset/reload switch:
   -   Switch pressed < 5 s = Reset activated
   -   Switch pressed > 5 s = Reload activated (Fail LED (red) goes out to indicate that a reload is in progress).
 •   Two LEDs indicating the board status:
   -   Run (green) = signals the current status of the CBSAP board (see Table 12-2)
   -   Fail (red) = error encountered
 •   Two LEDs for displaying the LAN interface status:
   -   LED1:
- Green = 100 Mbps online (link)
- Yellow = 10 Mbps online (link)
- Flashing = active
   -   LED2 (green):
- On = full-duplex (FDX)
- Off = half-duplex

Diagram of CBSAP board

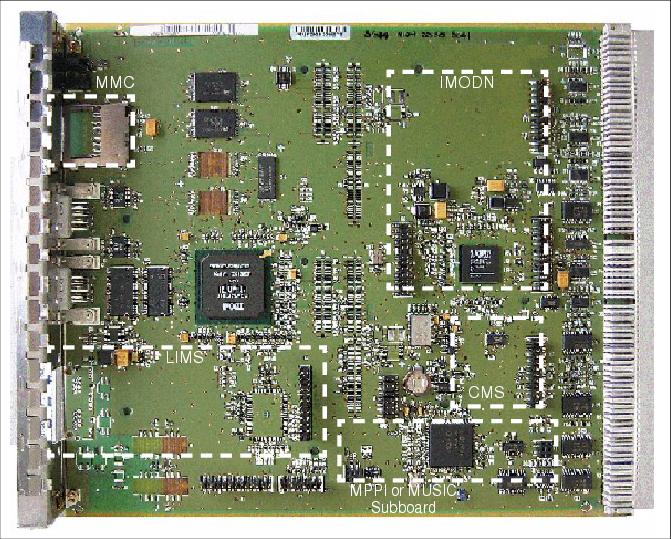

 Figure 3-5   CBSAP Board (S30810-Q2314-X)


Front panel

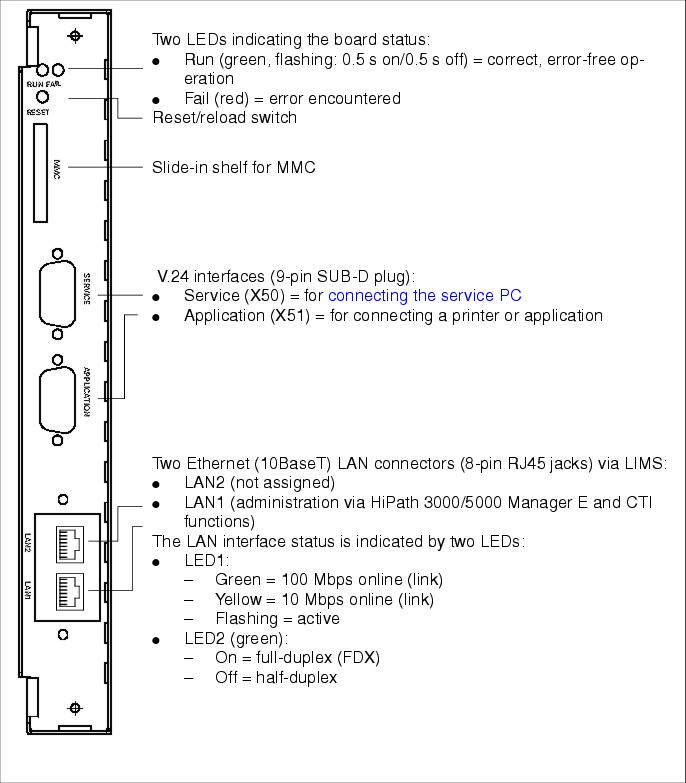

 Figure 3-6   CBSAP - Front Panel


V.24 interface assignment

 Table 3-17   CBSAP - V.24 Interface Assignment (SUB-D Plug)
 X50/X51, Pin
 Signal
 Description
 1
 DCD
Data carrier detect (not used)
 2
 RxD
Receive data
 3
 TxD
Transmit data
 4
 DTR
Data terminal ready (not used)
 5
 0 V
Ground
 6
 DSR
Data send ready (not used)
 7
 RTS
Request to send
 8
 CTS
Clear to send
 9
 RI
Ring indicator (not used)

LAN connector assignment via LIMS

 Table 3-18   CBSAP - LAN Connector Assignment (RJ45 Jack)
 Pin
 Signal
 Description
 1
 Tx +
Transmit +
 2
 Tx -
Transmit -
 3
 Rx +
Receive +
 4
 -
Not used
 5
 -
Not used
 6
 Rx -
Receive -
 7
 -
Not used
 8
 -
Not used
