NOTE   Danger of damage to property due to surge voltage. The required lightning protection measures must be taken for this board, see Section 2.1.2 "Lightning Protection".

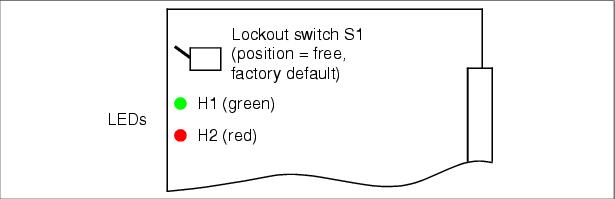

Figure 3-66

SLMO8 (not for U.S.), SLMO24 (S30810-Q2901-X100, S30810-Q2901-X)

Table 3-98

SLMO8 (not for U.S.) and SLMO24 - LED Statuses

Red LED	Green LED	Status	Action
Off	Off	Board not receiving power or not plugged in correctly.   Board is out of order.	Check plug contact on board.
On	Off	Board is receiving power and board test is in progress.   Board is defective if status remains unchanged (board test unsuccessful).	Replace board.
		Loadware loading not successfully completed. Board is faulty.	Replace board.
		Error detected on board.   Board is deactivated (not applicable to errors detected by test loops) or board was deactivated using HiPath 3000/5000 Manager E.	Check whether the board was deactivated using HiPath 3000/5000 Manager E. If not, replace board.
Flashing	Off	Loadware is being loaded.
Off	On	Board test completed successfully. Board is OK (idle state).
Off	Flashing	At least one subscriber line circuit is activated.

Table 3-99

SLMO8 (not for U.S.), SLMO24 - Cable 1 Assignment (SU Xx8)

Color Group	Pair	a-wire (tip)1	b-wire (ring)1	SU connector	SLMO8, SLMO24		MDFU/ MDFU-E	Patch Panel, MW8 pin	Notes
				BP: Xx8
1	1	wht/blu		19	1a	Access 1	1a	4
			blu/wht	39	1b		1b	5
	2	wht/ora		38	2a	Access 2	2a	4
			ora/wht	48	2b		2b	5
	3	wht/grn		27	3a	Access 3	3a	4
			grn/wht	47	3b		3b	5
	4	wht/brn		16	4a	Access 4	4a	4
			brn/wht	46	4b		4b	5
	5	wht/gry		05	5a	Access 5	5a	4
			gry/wht	45	5b		5b	5
2	6	red/blu		14	6a	Access 6	6a	4
			blu/red	44	6b		6b	5
	7	red/ora		23	7a	Access 7	7a	4
			ora/red	43	7b		7b	5
	8	red/grn		32	8a	Access 8	8a	4
			grn/red	42	8b		8b	5
	9	red/brn		11	9a	Access 9	9a	4	Not used for SLMO8
			brn/red	31	9b		9b	5
	10	red/gry		02	10a	Access 10	10a	4
			gry/red	22	10b		10b	5
3	11	blk/blu		13	11a	Access 11	11a	4
			blu/blk	33	11b		11b	5
	12	blk/ora		04	12a	Access 12	12a	4
			ora/blk	24	12b		12b	5
	13	blk/grn		15	13a	Access 13	13a	4
			grn/blk	35	13b		13b	5
	14	blk/brn		06	14a	Access 14	14a	4
			brn/blk	26	14b		14b	5
	15	blk/gry		17	15a	Access 15	15a	4
			gry/blk	37	15b		15b	5
4	16	yel/blu		08	16a	Access 16	16a	4
			blu/yel	28	16b		16b	5

1see "Abbreviations for colors" at the start of Section 3.3 "Peripheral boards".

Table 3-100

SLMO8 (not for U.S.), SLMO24 - Cable 2 Assignment (SU Xx9)

Color Group	Pair	a-wire (tip)1	b-wire (ring)1	SU connector	SLMO8, SLMO24		MDFU/ MDFU-E	Patch Panel, MW8 pin	Notes
				BP: Xx9
1	1	wht/blu				Free
			blu/wht
	2	wht/ora				Free
			ora/wht
	3	wht/grn				Free
			grn/wht
	4	wht/brn				Free
			brn/wht
	5	wht/gry				Free
			gry/wht
2	6	red/blu				Free
			blu/red
	7	red/ora				Free
			ora/red
	8	red/grn				Free
			grn/red
	9	red/brn		11	17a	Access 17	17a	4	Not used for SLMO8
			brn/red	31	17b		17b	5
	10	red/gry		02	18a	Access 18	18a	4
			gry/red	22	18b		18b	5
3	11	blk/blu		13	19a	Access 19	19a	4
			blu/blk	33	19b		19b	5
	12	blk/ora		04	20a	Access 20	20a	4
			ora/blk	24	20b		20b	5
	13	blk/grn		15	21a	Access 21	21a	4
			grn/blk	35	21b		21b	5
	14	blk/brn		06	22a	Access 22	22a	4
			brn/blk	26	22b		22b	5
	15	blk/gry		17	23a	Access 23	23a	4
			gry/blk	37	23b		23b	5
4	16	yel/blu		08	24a	Access 24	24a	4
			blu/yel	28	24b		24b	5

1see "Abbreviations for colors" at the start of Section 3.3 "Peripheral boards".

Table 3-101

SLMO24 - Assignment (SU Xx8, Xx9) (for U.S. only)

#	a-wire (tip)1	b-wire (ring)1	SU connector		SLMO24		CHAMP jack, MDF		Notes
			BP: Xx8	BP: Xx9
1	wht/blu		19		1a	Port 1	1	1a
		blu/wht	39		1b		26	1b
2	wht/ora		38		2a	Port 2	2	2a
		ora/wht	48		2b		27	2b
3	wht/grn		27		3a	Port 3	3	3a
		grn/wht	47		3b		28	3b
4	wht/brn		16		4a	Port 4	4	4a
		brn/wht	46		4b		29	4b
5	wht/gry		05		5a	Port 5	5	5a
		gry/wht	45		5b		30	5b
6	red/blu		14		6a	Port 6	6	6a
		blu/red	44		6b		31	6b
7	red/ora		23		7a	Port 7	7	7a
		ora/red	43		7b		32	7b
8	red/grn		32		8a	Port 8	8	8a
		grn/red	42		8b		33	8b
9	red/brn		11		9a	Port 9	9	9a
		brn/red	31		9b		34	9b
10	red/gry		02		10a	Port 10	10	10a
		gry/red	22		10b		35	10b
11	blk/blu		13		11a	Port 11	11	11a
		blu/blk	33		11b		36	11b
12	blk/ora		04		12a	Port 12	12	12a
		ora/blk	24		12b		37	12b
13	blk/grn		15		13a	Port 13	13	13a
		grn/blk	35		13b		38	13b
14	blk/brn		06		14a	Port 14	14	14a
		brn/blk	26		14b		39	14b
15	blk/gry		17		15a	Port 15	15	15a
		gry/blk	37		15b		40	15b
16	yel/blu		08		16a	Port 16	16	16a
		blu/yel	28		16b		41	16b
17	red/brn			11	17a	Port 17	9	9a
		brn/red		31	17b		34	9b
18	red/gry			02	18a	Port 18	10	10a
		gry/red		22	18b		35	10b
19	blk/blu			13	19a	Port 19	11	11a
		blu/blk		33	19b		36	11b
20	blk/ora			04	20a	Port 20	12	12a
		ora/blk		24	20b		37	12b
21	blk/grn			15	21a	Port 21	13	13a
		grn/blk		35	21b		38	13b
22	blk/brn			06	22a	Port 22	14	14a
		brn/blk		26	22b		39	14b
23	blk/gry			17	23a	Port 23	15	15a
		gry/blk		37	23b		40	15b
24	yel/blu			08	24a	Port 24	16	16a
		blu/yel		28	24b		41	16b

1see "Abbreviations for colors" at the start of Section 3.3 "Peripheral boards".
