SLC16N (not for U.S.)

NOTE
Danger of damage to property due to surge voltage. The required lightning protection measures must be taken for this board, see Section 2.1.2 "Lightning Protection".

Introduction
The SLC16N board is used in HiPath Cordless Office and connects base stations to
 •   HiPath 3550 (max. one SLC16N per system).
Chapter 11 "HiPath Cordless Office" contains basic information on the options available for the use of HiPath Cordless Office.
For initial installation of HiPath Cordless Office, the HiPath cordless system number (DECT ID) must be ordered together with the SLC16N board.
Replacement boards are always delivered without a HiPath cordless system number.
Installing the first SLC16N and entering the HiPath cordless system number releases 16 mobile telephones for use (PIN numbers are assigned). These mobile units can then be logged on to the system. Other mobile telephones must be released before they can be used (see Section 10.13.4 "Logging Mobile Telephones on to the System").
The base stations BS3/1 (S30807-H5482-X), BS3/3 (S30807-H5485-X), and BS3/S (X30807-X5482-X100) are being phased out and may no longer be ordered. You must use the successor product BS4 (S30807-U5491-X) instead of the types named.
You can still operate the base stations listed in HiPath 3000. Base stations BS3/1, BS3/3, and BS4 can also be used in mixed mode.
Base stations must be clocked with a high degree of accuracy for HiPath Cordless Office. For this, the subboard CMA or CMS must be plugged into the CBCC board (HiPath 3550) (see Table 11-1).

Switches and LEDs

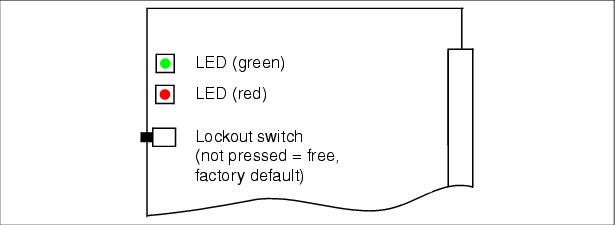

 Figure 3-54   SLC16N (S30810-Q2193-X100) (not for U.S.)

When you activate the lockout switch (press the switch), all idle mobile telephones are locked. Active mobile telephones are not locked until their release keys are pressed.
Before unplugging the SLC16N board, always activate the lockout switch and wait until the green LED stops flashing. This precaution ensures that none of the mobile telephones are active.

LED statuses and their meanings

 Table 3-60   SLC16N (not for U.S.) - LED Statuses
 Red LED
 Green LED
 Status
 Action
 Off
 Off
Board not receiving power or not plugged in correctly.
Board is out of order.
Check plug contact on board.
 On
 Off
Board is receiving power and board test is in progress.
Board is defective if status remains unchanged (board test unsuccessful).


Replace board.
Loadware loading not successfully completed. Board is faulty.
Replace board.
Error detected on board.
Board is deactivated (not applicable to errors detected by test loops) or board was deactivated using HiPath 3000/5000 Manager E.
Check whether the board was deactivated using HiPath 3000/5000 Manager E. If not, replace board.
 Flashing
 Off
Loadware is being loaded.

 Off
 On
Board test completed successfully. Board is OK (idle state).

 Off
 Flashing
At least one subscriber line circuit is activated.

 On
 On
Board disabled.
Check whether board was deactivated using the lockout switch.

Cable and connector assignment (backplane, MDFU/MDFU-E, patch panel)

 Table 3-61   SLC16N (not for U.S.) - Cable Assignment
 Color
group
 Pair
 a-wire (tip)1
 b-wire (ring)1
 SU connector
 SLC16N
 MDFU/
MDFU-E
 Patch Panel,
MW8 pin
 Notes
 BP: Xx8
 1
 1
 wht/blu

 19
 1a
 Access 1
 1a
 4
 BS 1:
 UP0/E port 1

 blu/wht
 39
 1b
 1b
 5
 2
 wht/ora

 38
 2a
 Access 2
 2a
 4
 BS x:
 UP0/E port x

 ora/wht
 48
 2b
 2b
 5
 3
 wht/grn

 27
 3a
 Access 3
 3a
 4
 BS x:
 UP0/E port x

 grn/wht
 47
 3b
 3b
 5
 4
 wht/brn

 16
 4a
 Access 4
 4a
 4
 BS x:
 UP0/E port x

 brn/wht
 46
 4b
 4b
 5
 5
 wht/gry

 05
 5a
 Access 5
 5a
 4
 BS x:
 UP0/E port x

 gry/wht
 45
 5b
 5b
 5
 2
 6
 red/blu

 14
 6a
 Access 6
 6a
 4
 BS x:
 UP0/E port x

 blu/red
 44
 6b
 6b
 5
 7
 red/ora

 23
 7a
 Access 7
 7a
 4
 BS x:
 UP0/E port x

 ora/red
 43
 7b
 7b
 5
 8
 red/grn

 32
 8a
 Access 8
 8a
 4
 BS x:
 UP0/E port x

 grn/red
 42
 8b
 8b
 5
 9
 red/brn

 11
 9a
 Access 9
 9a
 4
 BS x:
 UP0/E port x

 brn/red
 31
 9b
 9b
 5
 10
 red/gry

 02
 10a
 Access 10
 10a
 4
 BS x:
 UP0/E port x

 gry/red
 22
 10b
 10b
 5
 3
 11
 blk/blu

 13
 11a
 Access 11
 11a
 4
 BS x:
 UP0/E port x

 blu/blk
 33
 11b
 11b
 5
 12
 blk/ora

 04
 12a
 Access 12
 12a
 4
 BS x:
 UP0/E port x

 ora/blk
 24
 12b
 12b
 5
 13
 blk/grn

 15
 13a
 Access 13
 13a
 4
 BS x:
 UP0/E port x

 grn/blk
 35
 13b
 13b
 5
 14
 blk/brn

 06
 14a
 Access 14
 14a
 4
 BS x:
 UP0/E port x

 brn/blk
 26
 14b
 14b
 5
 15
 blk/gry

 17
 15a
 Access 15
 15a
 4
 BS x:
 UP0/E port x

 gry/blk
 37
 15b
 15b
 5
 4
 16
 yel/blu

 08
 16a
 Access 16
 16a
 4
 BS x:
 UP0/E port x

 blu/yel
 28
 16b
 16b
 5
1see "Abbreviations for colors" at the start of Section 3.3 "Peripheral boards".

System configuration using SLC16N
For information on the maximum possible system configuration of HiPath Cordless Office with SLC16N boards, see Table 11-1.

Supplying power to base stations
Power is supplied to the base stations primarily via the internal PSU in the system in question.
 •   HiPath 3550
Subject to certain prerequisites, the system-internal PSU UPSC-D provides sufficient power for the operation of sixteen BS3/1s (one UP0/E each) or eight BS3/3 (two UP0/E each). These prerequisites depend on the
   -   Line length and line type between SLC16N and base station.
The following specifications are based on line lengths of up to 1000 m and a line type 2x0.6 mm per UP0/E.
   -   Number and type of corded telephones connected to the system.
Table 3-62 through Table 3-63 show which telephone configurations work without additional power supply.

 Table 3-62   HiPath 3550 - Maximum Number of Corded Telephones Depending on the Number of BS3/1 Base Stations Connected to SLC16N and BS4s connected to SLC16N (not for U.S.)
 Number
 of BS3/1s and BS4s
 connected via 1xUP0/E to
 SLC16N
 Maximum number of corded telephones
 Analog telephones
 0
 1-10
 11-20
 21-30
 31-40
 41-50
 optiPoint 500 (digital telephones)
 1
 66
 61
 57
 53
 48
 44
 2
 63
 59
 54
 50
 46
 41
 3
 60
 56
 52
 47
 43
 39
 4
 58
 53
 49
 45
 40
 36
 5
 55
 51
 47
 42
 38
 33
 6
 53
 48
 44
 40
 35
 31
 7
 50
 46
 41
 37
 33
 28
 8
 47
 43
 39
 34
 30
 26
 9
 45
 40
 36
 32
 27
 23
 10
 42
 38
 33
 29
 25
 20
 11
 40
 35
 31
 27
 22
 18
 12
 37
 33
 28
 24
 20
 15
 13
 34
 30
 26
 21
 17
 13
 14
 32
 27
 23
 19
 14
 10
 15
 29
 25
 20
 16
 12
 7
 16
 27
 22
 18
 13
 9
 5

 Table 3-63   HiPath 3550 - Maximum Number of Corded Telephones Depending on the Number of BS3/3 Base Stations Connected to SLC16N and BS4s connected to SLC16N (not for U.S.)
 Number
 of BS3/3s and BS4s
 connected via 2xUP0/E to SLC16N
 Maximum number of corded telephones
 Analog telephones
 0
 1-10
 11-20
 21-30
 31-40
 41-50
 optiPoint 500 (digital telephones)
 1
 64
 60
 56
 51
 47
 42
 2
 60
 56
 52
 47
 43
 39
 3
 57
 52
 48
 43
 39
 35
 4
 53
 48
 44
 40
 35
 31
 5
 49
 44
 40
 36
 31
 27
 6
 45
 40
 36
 32
 27
 23
 7
 41
 37
 32
 28
 23
 19
 8
 37
 33
 28
 24
 20
 15

Options for supplying power to the base stations
For information on connecting the base stations, refer to the HiPath Cordless Office service manual.
Each base station must be connected to the SLC16N via the main distribution frame (MDFU or MDFU-E).
Always route the UP0/E interfaces on the SLC16N via a splitting strip to arrest surges caused to lightning. To do so, insert the polarized surge protectors (supplied) in the plugging locations on the splitting strip from above.
The following options are available for supplying power to the base stations:
 •   Power supply via one UP0/E interface (Seite 3-148)
 •   Power supply via two UP0/E interfaces (Seite 3-149)
 •   Power supply via three UP0/E interfaces (Seite 3-150), for BS3/3 only
If the power supplied by the UPSC-D (HiPath 3550) is insufficient, additional power can be supplied by installing the external power supply (Powerbox PB3000 with LUNA2 (Seite 3-150).
Signal propagation times differ due to the varying distances between the base stations, the system, and the connection cables used (refer to the HiPath Cordless Office service manual). The SLC16N board automatically balances these propagation times.

Base Station Power Supply via One UP0/E Interface
Connect the base station to a free interface on SLC16N as shown in Figure 3-55. Be careful not to exceed the maximum connection cable lengths (1000 m for 2 x 0.6 mm).
 Figure 3-55   Base Station Power Supply via One UP0/E Interface (not for U.S.)


Base station power supply via two UP0/E interfaces
Connect the base station to two free interfaces on SLC16N as shown in Figure 3-56. Be careful not to exceed the maximum connection cable lengths (1000 m for 2 x 0.6 mm).
Using two UP0/E interfaces increases the traffic capacity in BS3/3 base stations.
 Figure 3-56   Base Station Power Supply via Two UP0/E Interfaces (not for U.S.)


Base Station Power Supply via Three UP0/E Interfaces
Connect the base station to three free interfaces on SLC16N as shown in Figure 3-57. Be careful not to exceed the maximum connection cable lengths (1000 m for 2 x 0.6 mm).
The use of three UP0/E interfaces increases the traffic capacity in the base station.
 Figure 3-57   Base Station Power Supply via Three P0/E Interfaces (not for U.S.)


Additional UPSC-D power supply via an external power supply unit
If the power supplied by the UPSC-D (HiPath 3550) is insufficient, additional power can be supplied by installing the external power supply (Powerbox PB3000). To do this, connect the DC port on the PB3000 to the special DC input on the UPSC-D.
As described on the preceding pages, the base stations must be connected to free UP0/E interfaces. BS3/1 needs one, BS3/2 needs two, and BS3/3 needs three free UP0/E interfaces.
Powerbox PB3000 is also used if an external power supply unit is required for HiPath 3500 or HiPath 3300 (19-inch housing).
Section 11.4 "Power-Related Capacity Limits" shows which telephone configurations manage without an additional power supply and which configurations require an additional one.
